Engineering multi-layer foam mattresses requires a strategic approach to material selection and layering to achieve specific comfort, support, and pressure-relief profiles. Product development teams and brand managers need a clear framework to innovate their product lines effectively.
For a balanced and durable multi-layer foam mattress, I recommend prioritizing a firm, high-polymer-density base. Integrate transition layers only when they demonstrably improve the compression gradient or prevent bottoming out, and design comfort layers for targeted pressure relief without excessive softness. This approach is ideal when designing a new all-foam mattress product line for the general market, ensuring both performance and commercial viability.
Understanding Foam Properties: Density, IFD, and Support Factor
To accurately specify foam, it's crucial to understand that foam firmness is independent of its density. While polymer density, which excludes fillers, typically improves the retention of original foam properties and thus durability, it does not directly dictate how soft or firm a foam feels. The finished feel of a mattress cannot be inferred solely from foam density. Foam firmness is set by its Indentation Force Deflection (IFD) and compression curve, while durability is set separately by density and fatigue criteria.
When specifying foam, focus on Indentation Force Deflection (IFD) for firmness and polymer density for durability. A high-density foam can be soft, and a low-density foam can be firm, so these properties must be specified separately to achieve your desired performance and longevity. For instance, 25% Indentation Force Deflection (IFD) measures the force in pounds required to indent a foam specimen by 25% of its original height, directly indicating surface feel. This 25% IFD value is a direct measure of a foam's initial surface feel, but remember that the overall mattress feel is a complex interaction of all layers, the cover, and the foundation.
Support factor, defined as 65% IFD divided by 25% IFD, reports typical values of 1.5–2.6 and improves deep-load support and resistance to bottoming. A higher support factor allows for a soft surface while maintaining resistance to bottoming out. For layers that need to provide deep support while still offering some initial give, a higher support factor is beneficial. This allows for a plush top layer without sacrificing the underlying structural integrity, preventing sleepers from feeling the hard base.
The Strategic Role of Each Layer: Base, Transition, and Comfort

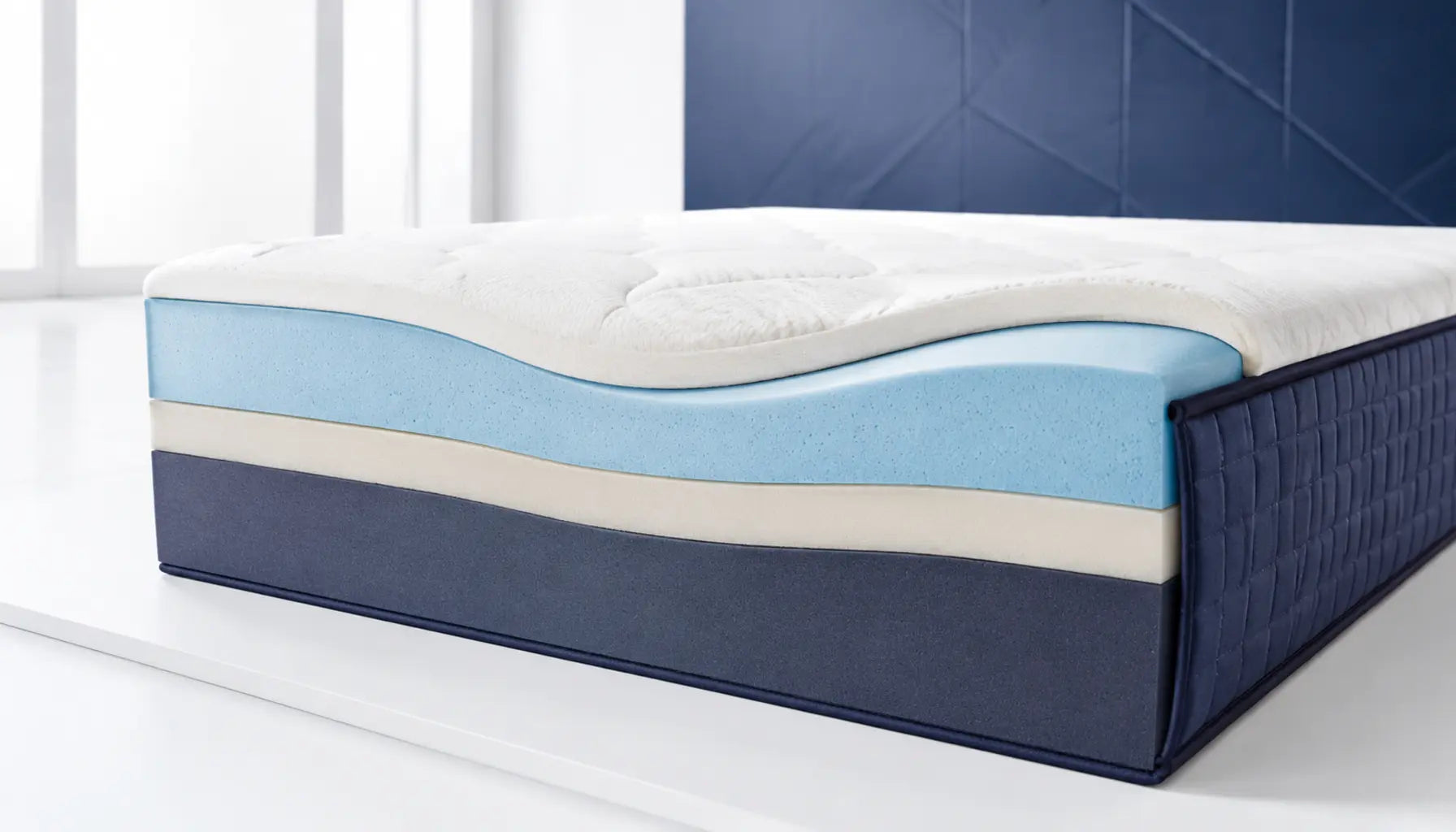

Each layer in a multi-layer foam mattress serves a distinct purpose, contributing to the overall comfort, support, and durability profile. The base layer provides foundational stability, comfort layers offer initial compliance and pressure relief, and transition layers bridge the gap between them.
The Foundation: Base Layer Selection for Stability and Durability
The base layer is the anchor of your mattress design, providing deep support and structural integrity. A durable support core should be selected for stable deep support, not merely because "high-density equals firm." This layer typically uses higher polymer density foam to ensure longevity and prevent premature sagging, regardless of its specific firmness.
The Feel Factor: Comfort Layer Choices for Pressure Relief and Softness
Comfort layers are designed for immediate feel and pressure point relief. They should provide higher initial compliance and enough thickness for shoulder and hip accommodation. However, excessively soft foam can be counterproductive; a 2025 finite-element study found interface pressure decreased from >10 kPa to 6.4 kPa as foam softened, but excessively soft foam increased pressure due to densification.
A subject-specific pelvis FE model reported sacral muscle-interface compressive stress of 18.5 kPa on soft foam versus 30.9 kPa on firm foam (+67%). Increases in compressive stress from soft to firm foam were 20% at the ischium, 42% at the lesser trochanter, and 50% at the skin.
While soft comfort layers are crucial for pressure relief, there's a point of diminishing returns where too much softness can lead to "bottoming out" or densification, paradoxically increasing pressure. Balance initial softness with adequate support to prevent this.
Building Comfort: Transition Layers for Progressive Support
Transition layers are often used to create a gradual firmness gradient between the soft comfort layers and the firm base. The three-layer comfort/transition/support stack is a defensible engineering heuristic, but researched standards and trials do not require a separate transition layer.
A transition layer adds value only if it produces a needed compression gradient, controls immersion, or prevents bottoming with less cost or height than revising adjacent layers. Transition layers may be thin or omitted if the comfort-to-core transition is not abrupt.
Do not include a transition layer by default. Evaluate whether it genuinely enhances the mattress's performance or feel in a way that cannot be achieved more simply or cost-effectively by adjusting the comfort or base layers. If the transition from comfort to core is already smooth, a separate layer may be unnecessary.
Strategic Layering Techniques: Common Profiles and Their Outcomes
When designing for specific comfort profiles, candidate plush, medium, and firm constructions should be treated as controlled prototype hypotheses. Exact thicknesses and IFDs cannot be responsibly universalized from the available evidence for plush/medium/firm ratings.
A systematic review of 24 controlled-trial articles concluded that subjectively medium-firm and self-adjusted mattresses were most consistently associated with comfort, sleep quality, and spinal alignment. Furthermore, in a randomized trial of 313 adults with chronic nonspecific low-back pain, medium-firm mattresses (European Hs=5.6) outperformed firm mattresses (Hs=2.3) at 90 days for pain in bed (OR 2.36) and disability (OR 2.10).
For general market appeal, aiming for a medium-firm feel is often a safe bet, as it consistently correlates with positive sleep outcomes. Plush constructions aim for greater initial compliance with protected deep support, while firm constructions provide lower initial compliance without using low density as a shortcut. Medium constructions target balanced initial compliance and immersion.
Prototyping and Testing Multi-Layer Foam Designs
Effective prototyping is essential to validate your layering strategy and ensure the final product meets your comfort, support, and durability targets. This process requires controlled experimentation, not guesswork.
To systematically evaluate foam layer interactions and validate designs, consider the following:
- Define Target Profile: Clearly articulate the desired comfort (plush, medium, firm), support characteristics, and durability expectations.
- Establish Controls: Hold total mattress height, cover material, and foundation constant across prototypes.
- Isolate Variables: A recommended experiment is to hold total height, cover, foundation, and polymer-density class constant while varying one layer’s IFD or thickness at a time.
- Two-Layer Baseline: Include a two-layer control in prototyping so that a transition layer must earn its cost through improved performance or robustness.
- Iterative Refinement: Build and test prototypes, gathering objective data and subjective feedback. Adjust layer specifications based on results.
- Durability Testing: Incorporate fatigue and compression set testing to ensure the chosen foam combinations will maintain their properties over time.
By systematically varying one parameter at a time, you can isolate the impact of each layer and foam property on the overall mattress feel and performance. This data-driven approach minimizes costly rework and accelerates product development.
Balancing Performance and Commercial Viability: Cost Considerations
Designing a multi-layer foam mattress involves balancing desired performance characteristics with commercial viability. Every material choice and added layer has cost implications that extend beyond the raw material price. Material cost and availability are dependent on time, region, formulation, quantity, conversion, and freight.
Added layers introduce material, handling, lamination, inventory, and failure-interface costs. Be aware that material costs fluctuate and are influenced by many factors. Each additional layer in your design adds complexity and cost, not just for the foam itself, but also for manufacturing processes like lamination, increased inventory management, and potential points of failure.
No authoritative public source supplies stable US OEM price premiums for memory foam, latex, HR polyfoam, or added transition layers on comparable specifications. The economically preferred stack is the lowest-complexity architecture that meets defined assembled-product gates, not necessarily the fewest layers or lowest material price.
Focus on the total cost of the bill of materials (BOM) and manufacturing process, not just individual foam prices. The most cost-effective solution is the simplest design that consistently achieves your performance targets, even if it means a slightly higher cost for a single, more capable layer that eliminates the need for another.
Relevant Foam Material Standards and Certifications
Adhering to industry standards and certifications helps ensure material quality, consistency, and compliance, providing confidence in your foam components. ASTM D3574-25 is the active ASTM standard for slab, bonded, and molded flexible polyurethane foams. ASTM D3574 procedures provide standardized data for R&D, quality control, and acceptance or rejection of flexible cellular materials. When specifying foam, reference ASTM D3574 to ensure suppliers are providing materials tested to recognized industry benchmarks. This standard covers various tests, including density and IFD, which are critical for consistent product quality.
CertiPUR-US slabstock guidelines reference ASTM D3574 Test A for density and Test B1 for 25% IFD. For foam with 25% IFD of 24–36 lbf, CertiPUR-US 2025 program criteria include less than 6 lbf loss after 8,000 cycles. CertiPUR-US certification is a widely recognized standard in the US market, indicating that foams meet rigorous criteria for emissions, content, and durability. Specifying CertiPUR-US certified foams can enhance consumer trust and ensure your product aligns with health and environmental standards.
The most effective multi-layer foam mattress design is the lowest-complexity architecture that demonstrably meets your defined assembled-product performance gates. To move forward, define your target comfort and support profile, then request a prototyping consultation to map out potential foam types, densities, and IFDs for each layer, considering their interaction and cost implications.
